Choosing the Right Gas for Welding: A Guide to Different Gases and Their Uses

Updated: Sep 25

Selecting the right gas for welding can make or break the quality of your weld. Different gases have unique properties that affect how the weld pool behaves, the penetration, and the cleanliness of the weld. Whether you’re using MIG, TIG, or Stick welding, understanding how various gases work is crucial for producing strong, durable, and defect-free welds.

In this guide, we’ll explore the most common welding gases and their applications, breaking down why certain gases are better suited for specific welding processes and materials. By the end, you’ll have a clear understanding of which gas to choose for your next project.


Why Shielding Gas Matters in Welding

Welding gases, often called shielding gases, serve an important role in protecting the weld from contamination during the welding process. Without shielding gas, the molten weld pool would be exposed to oxygen, nitrogen, and hydrogen from the atmosphere, leading to defects like porosity, cracking, and poor penetration.

The right shielding gas not only prevents contamination but also influences:

  • Arc stability: Affects how smooth and consistent the welding arc is.

  • Penetration depth: Determines how deep the weld penetrates into the material.

  • Weld bead shape: Helps control how wide or narrow the bead is.

  • Spatter levels: Some gases help reduce the amount of spatter during welding.

Now, let’s dive into the different gases used in various welding processes.


Gases Used in MIG Welding (Metal Inert Gas Welding)

MIG welding relies heavily on shielding gases to protect the weld from contamination and ensure a smooth, consistent arc. The gas you choose depends on the type of material you’re welding, as well as the specific characteristics you want to achieve in your weld.


1. Argon (Ar)


Argon is the most commonly used gas in MIG welding, especially when welding non-ferrous metals like aluminum, magnesium, and copper. It provides a smooth arc and stable weld pool, making it ideal for precise work.


Why Use Argon:

  • Stable arc: Helps create a steady and smooth arc, which is crucial for clean welds.

  • Deep penetration: Argon promotes deeper penetration, especially when welding thick materials.

  • Great for aluminum: Argon is the top choice for aluminum and other non-ferrous metals in MIG welding.


Best Applications:

  • Aluminum and other non-ferrous metals.

  • Stainless steel when combined with other gases.


2. Carbon Dioxide (CO2)


Carbon dioxide (CO2) is a cost-effective option and is often used in MIG welding for carbon steel. Unlike argon, CO2 is reactive, which means it can react with the weld pool and produce more spatter. However, it also provides deeper penetration and is more economical.


Why Use CO2:

  • Deeper penetration: Ideal for welding thicker materials, especially mild steel.

  • Cost-effective: CO2 is one of the cheapest welding gases, making it suitable for large-scale or budget-sensitive projects.

  • Better for thicker steel: Works well for structural steel and heavy-duty applications.


Drawbacks:

  • CO2 can produce more spatter and a rougher weld bead compared to argon.


Best Applications:

  • Carbon steel.

  • Heavy-duty structural welding.


3. Argon-CO2 Mixtures

A common blend in MIG welding is a mixture of argon and carbon dioxide. This blend provides the stability of argon with the deeper penetration and cost-effectiveness of CO2. The most common ratio is 75% argon and 25% CO2, although this can vary depending on the desired outcome.


Why Use an Argon-CO2 Mix:

  • Balance of arc stability and penetration: Offers smoother arcs with good penetration.

  • Reduced spatter: Compared to pure CO2, the mix produces less spatter, leading to cleaner welds.

  • Versatile: Suitable for a wide range of welding tasks, especially on carbon steel.



Best Applications:

  • Carbon steel and stainless steel.

  • General-purpose MIG welding.


4. Helium (He)

Helium is often used in MIG welding when working with thicker materials or for welding metals like aluminum and copper that require more heat input. Helium increases heat in the arc, allowing for better fusion and faster travel speeds.


Why Use Helium:

  • Higher heat input: Great for thicker materials and metals with high thermal conductivity.

  • Increased travel speeds: Helps complete welding jobs faster.


Best Applications:

  • Aluminum, copper, and other non-ferrous metals.

  • Thicker materials that require more heat.


Gases Used in TIG Welding (Tungsten Inert Gas Welding)

TIG welding requires precise gas control to create clean, high-quality welds. The most commonly used gas in TIG welding is argon, although some applications benefit from using gas mixtures with helium or hydrogen.


1. Argon (Ar)

For most TIG welding applications, pure argon is the gas of choice. It provides excellent arc stability, which is essential for the precise control needed in TIG welding.


Why Use Argon:

  • Stable arc: Crucial for creating a smooth, stable arc in TIG welding.

  • Versatile: Works well on both ferrous and non-ferrous metals.

  • Clean welds: Argon produces minimal spatter and clean, aesthetically pleasing welds.


Best Applications:

  • Aluminum, stainless steel, magnesium, and copper.

  • Thin metals that require precise control.


2. Helium (He)

In TIG welding, helium is often added to argon to increase heat and penetration, especially when working with thicker materials or metals that have high thermal conductivity, like copper.


Why Use Helium:

  • Increased heat input: Improves penetration and travel speed.

  • Better for thicker materials: Ideal for thicker sections of non-ferrous metals.


Best Applications:

  • Thicker metals like aluminum, copper, and stainless steel.

  • High-speed TIG welding.


3. Argon-Hydrogen Mix

For stainless steel and nickel alloys, a small amount of hydrogen (typically around 5%) is sometimes added to argon. This helps to increase heat and improve weld bead appearance by reducing oxidation.


Why Use Argon-Hydrogen Mix:

  • Cleaner welds: Hydrogen acts as a deoxidizer, reducing porosity and oxidation.

  • Faster travel speed: Helps speed up welding while maintaining quality.


Best Applications:

  • Stainless steel and nickel alloys.


Gases Used in Stick Welding (Shielded Metal Arc Welding)

Stick welding, or SMAW, typically doesn’t require a shielding gas since the electrode itself provides the protection needed for the weld. However, gases are sometimes used in special applications, such as submerged arc welding (SAW) or flux-cored arc welding (FCAW), where the flux creates the shielding atmosphere.


Specialty Gases and Applications

There are other specialty gases or gas mixtures used in more niche welding applications, such as:

  • Oxygen (O2): Occasionally added in small amounts to argon-CO2 mixtures to improve penetration and arc stability, especially in MIG welding.

  • Nitrogen (N2): Sometimes used in the welding of duplex stainless steel to prevent nitrogen loss, which can weaken the material.


Choosing the Right Gas: Key Considerations

When deciding which gas to use for welding, there are several factors to keep in mind:

  • Material Type: Different metals require different gases. For example, aluminum works best with argon or helium, while steel may need a CO2 or argon-CO2 blend.

  • Weld Penetration: CO2 and helium provide deeper penetration, while argon offers a smoother, more stable arc for lighter metals.

  • Spatter Levels: If you want to reduce spatter and minimize cleanup, argon-based gases are ideal.

  • Cost: CO2 is more affordable than other gases like helium, which can be a factor for large projects.


Conclusion: Gas Choice Makes the Difference

Choosing the right shielding gas is essential for producing high-quality welds, minimizing defects, and achieving the desired penetration and arc stability. Whether you’re working with MIG or TIG welding, understanding the role each gas plays will help you optimize your welds for strength, appearance, and durability.

By considering the material, welding process, and specific project requirements, you’ll be able to select the right gas for the job, ensuring clean, defect-free welds that meet industry standards.

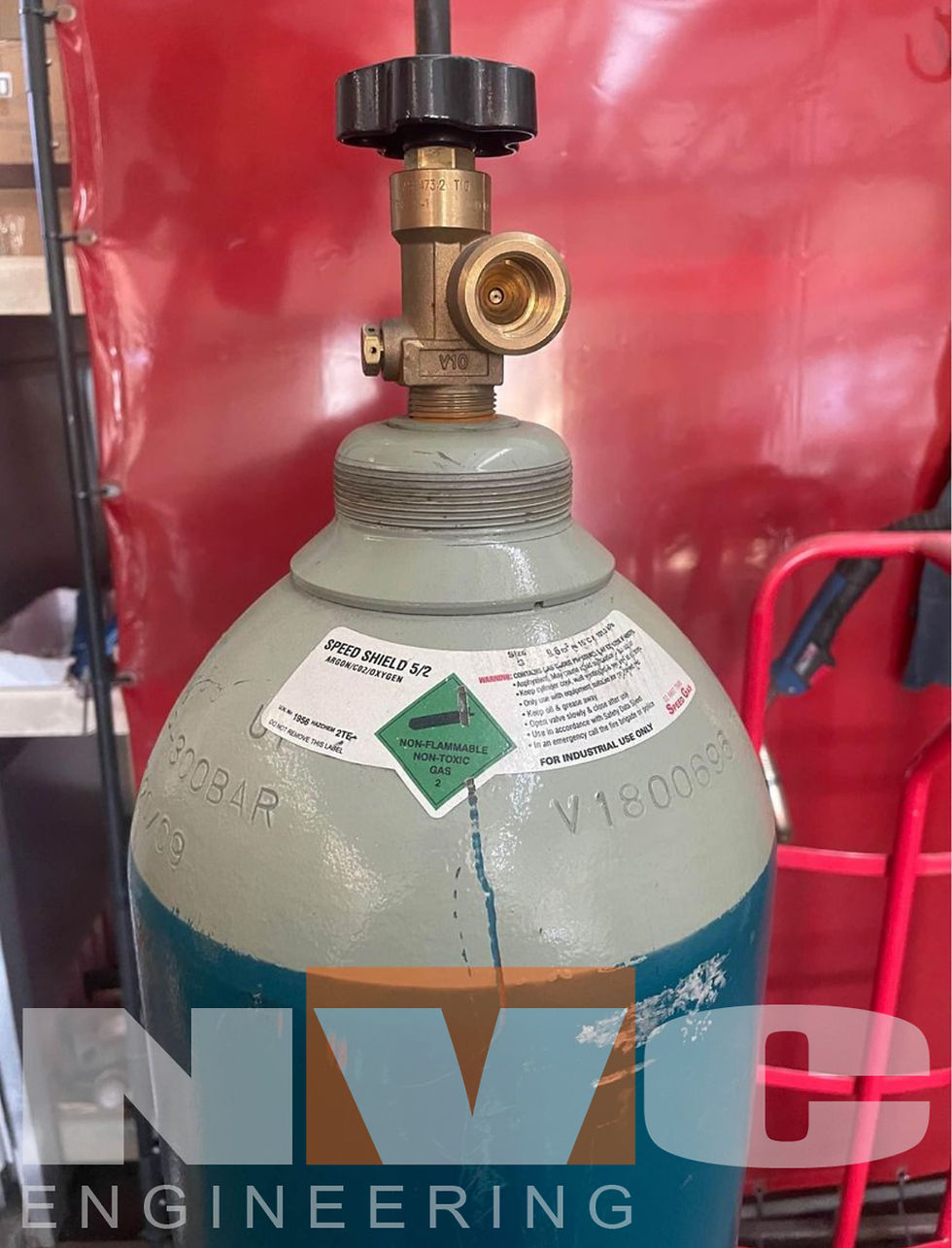

welding gas
